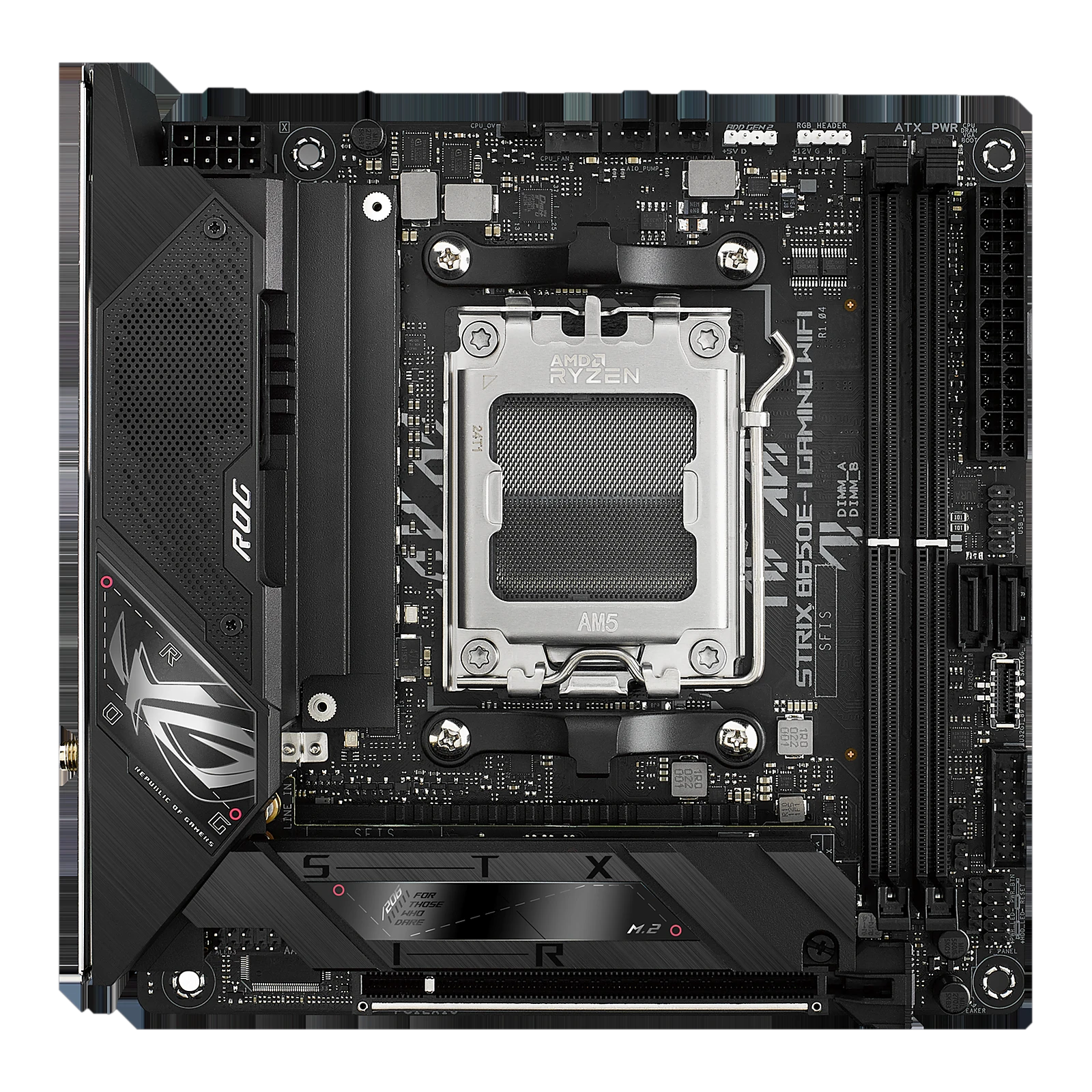

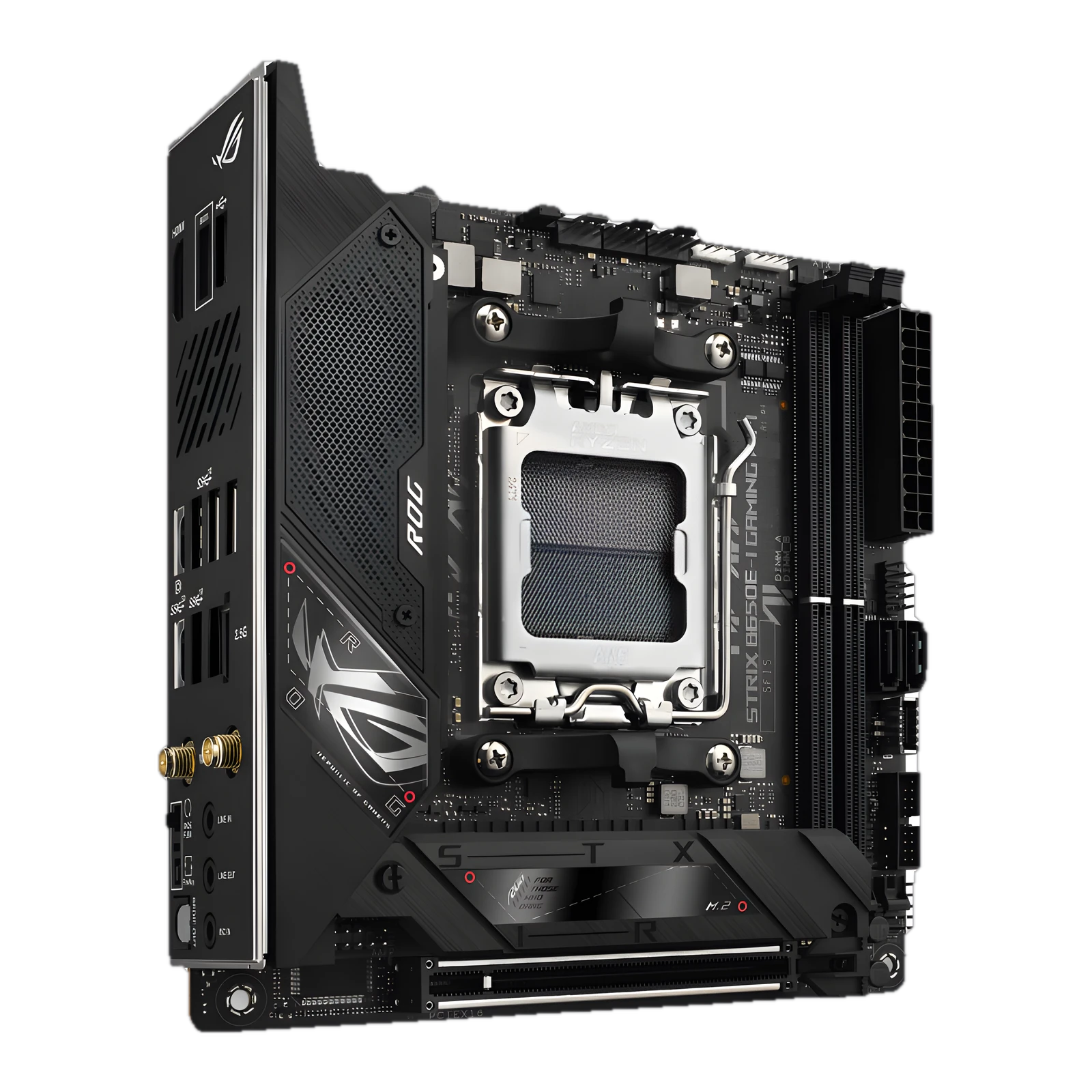

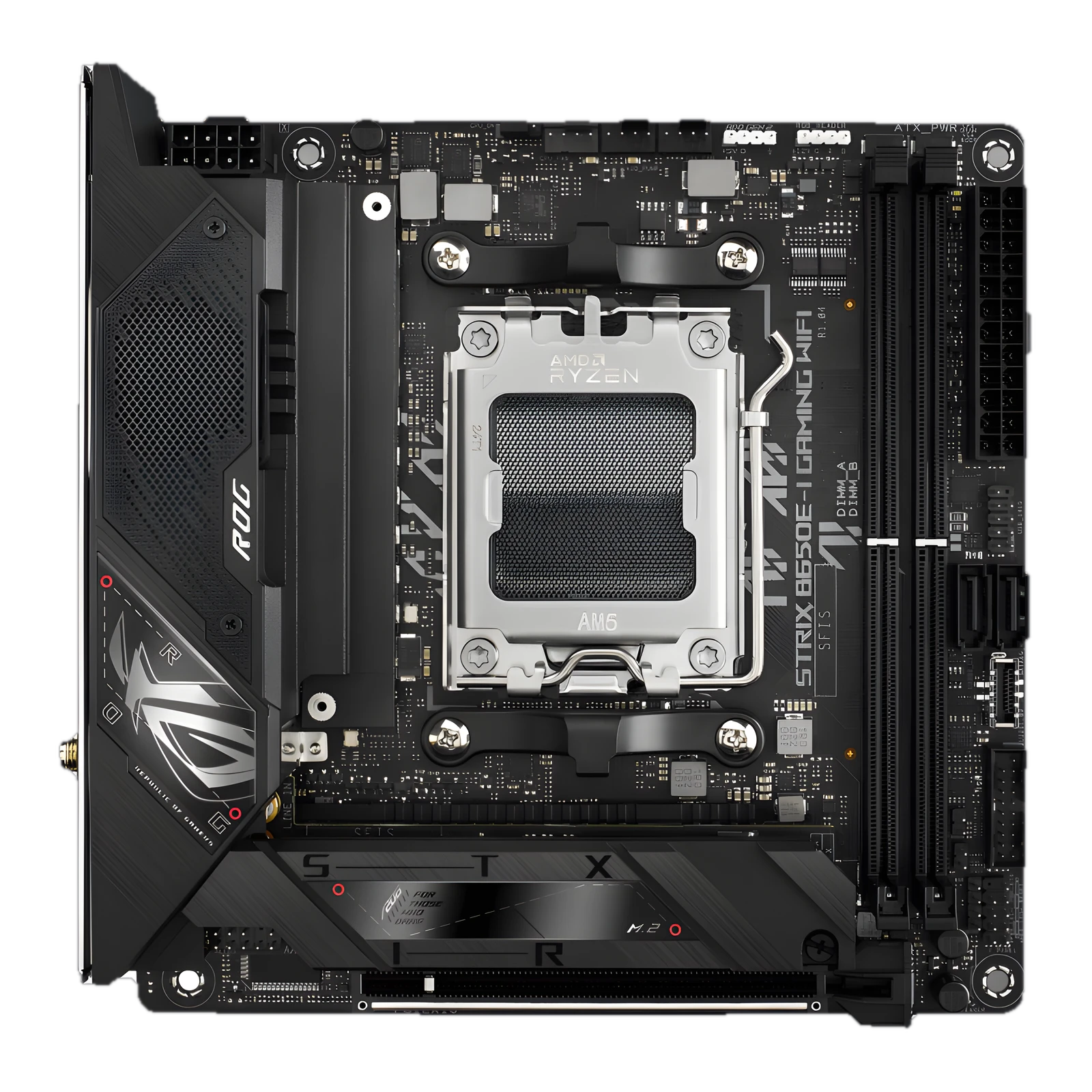

ASUS ROG STRIX B650E-I GAMING WIFI DDR5 Mini-ITX Motherboard, AM5 Socket, B650 Chipset, 2x DIMM Slots, 1x PCIE 5.0 x16 Slot, 2x M.2 - 2x SATA, HDMI, WIFI6E, BT, Max 96GB.

Introduction

The ASUS ROG Strix B650E-I Gaming WiFi is a feature-packed Mini-ITX motherboard optimized for high-performance compact builds. Designed for AM5 Ryzen™ 7000 and 9000 series processors, it brings top-tier gaming performance, ultra-fast connectivity, and comprehensive power and thermal management in a small form factor.

Chipset & Socket

Built on the AMD B650 chipset with an AM5 socket, it supports the latest Ryzen™ desktop CPUs and unlocks advanced platform capabilities including DDR5 memory and PCIe 5.0 support.

Power Design

Equipped with a robust 10+2-phase power design and high-quality components, this board delivers stable and reliable power even during demanding workloads.

Memory

Features two DDR5 DIMM slots, supporting speeds up to 6400+ MT/s (OC), for a maximum capacity of 64 GB, with support for AMD EXPO™ and On-Die ECC for enhanced performance and reliability.

Expansion

Includes a single PCIe 5.0 x16 SafeSlot (x16 mode), offering future-proof compatibility for next-gen GPUs and expansion cards.

Storage

Offers two M.2 slots: one PCIe 5.0 x4 and one PCIe 4.0 x4, plus two SATA 6 Gb/s ports. Supports RAID configurations via AMD RAIDXpert2.

Networking

Furnished with Intel® 2.5 Gb Ethernet (with LANGuard) and dual-band Wi-Fi 6E with Bluetooth v5.2, enabling fast and reliable wired and wireless connectivity.

I/O

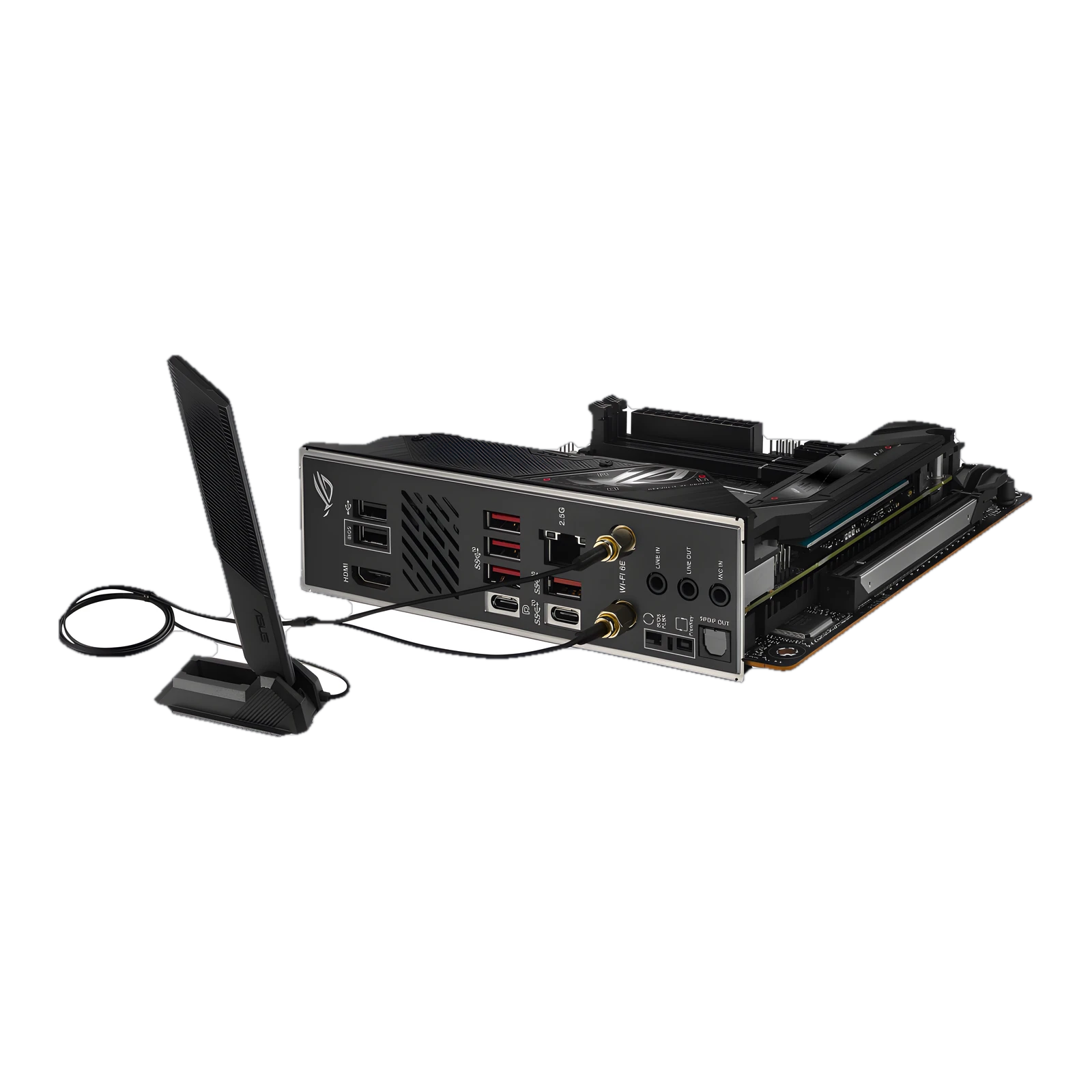

The rear I/O panel includes 8× USB ports (including Gen 2 Type-C, Gen 2, and Gen 2×2 Type-C), 2× USB 2.0, HDMI, Wi-Fi antenna module, 2.5 Gb LAN, premium audio with SupremeFX 7.1, BIOS FlashBack™, FlexKey, and RGB headers.

Cooling

Features solid cooling solutions with VRM and chipset heatsinks, plus fan headers including CPU, AIO pump, and chassis, managed via ASUS Fan Xpert for effective thermal control.

Software

Comes bundled with ASUS ecosystem tools like Armoury Crate (Aura Sync, Fan Xpert), AI Advisor, DriverHub, and comprehensive UEFI BIOS utilities for easy system tuning.

Compatibility

Compatible with Ryzen™ 7000 & 9000 series CPUs, DDR5 memory, next-gen PCIe devices, and modern networking, packaged in a compact Mini-ITX format ideal for small, high-performance builds.

Benefits

The ROG Strix B650E-I Gaming WiFi delivers elite gaming performance, top-tier connectivity, compact design, and premium quality—making it one of the most capable Mini-ITX motherboards for AM5 systems.
