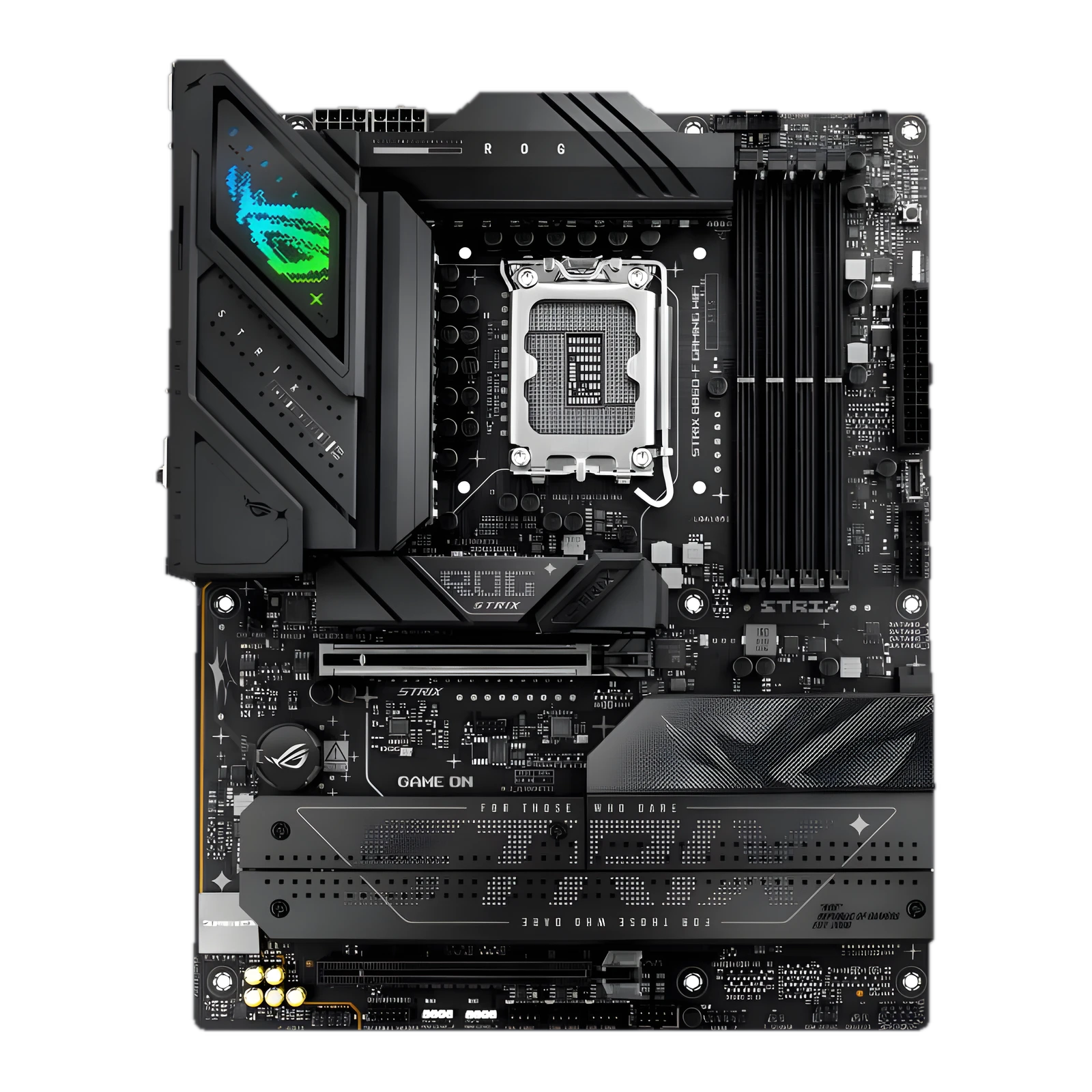

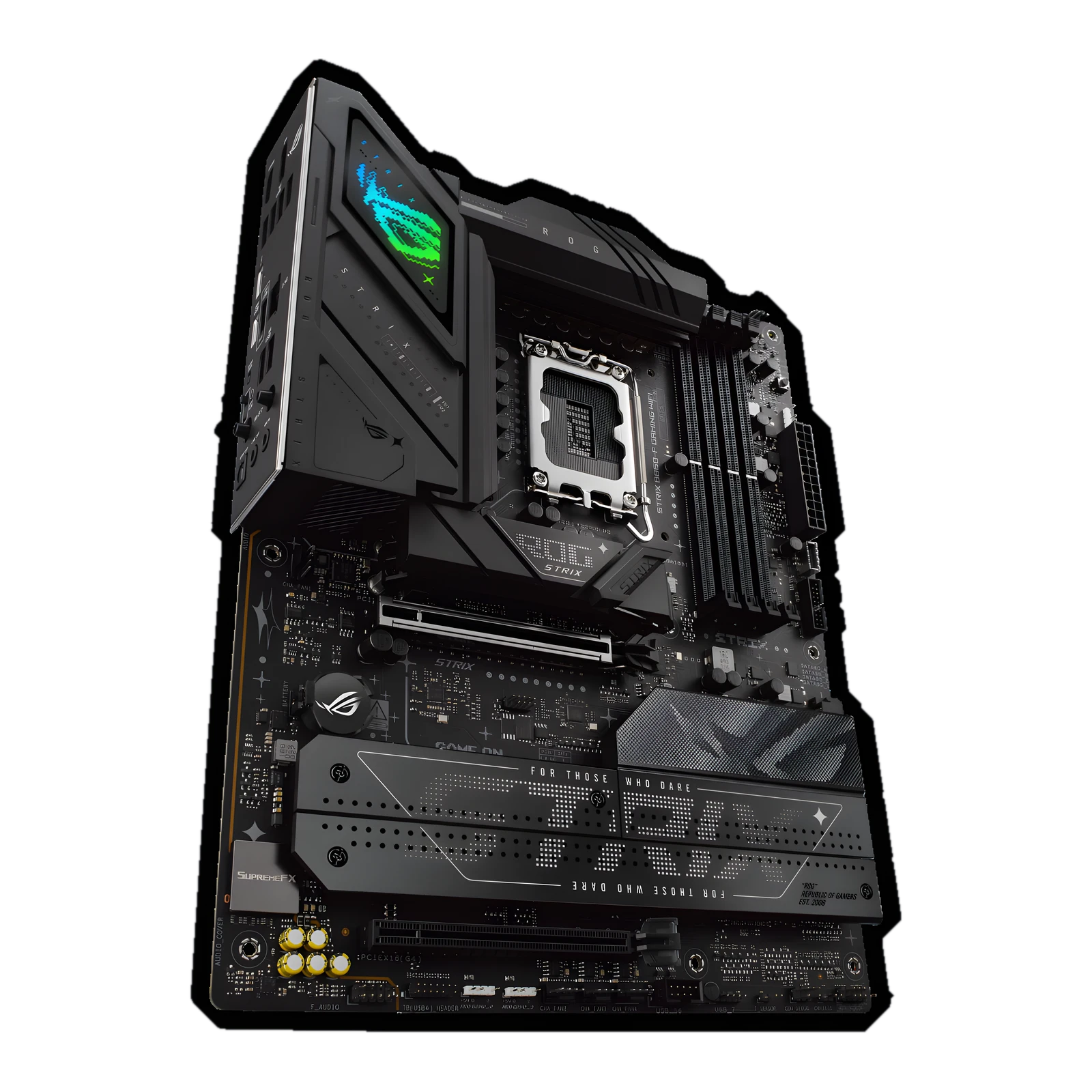

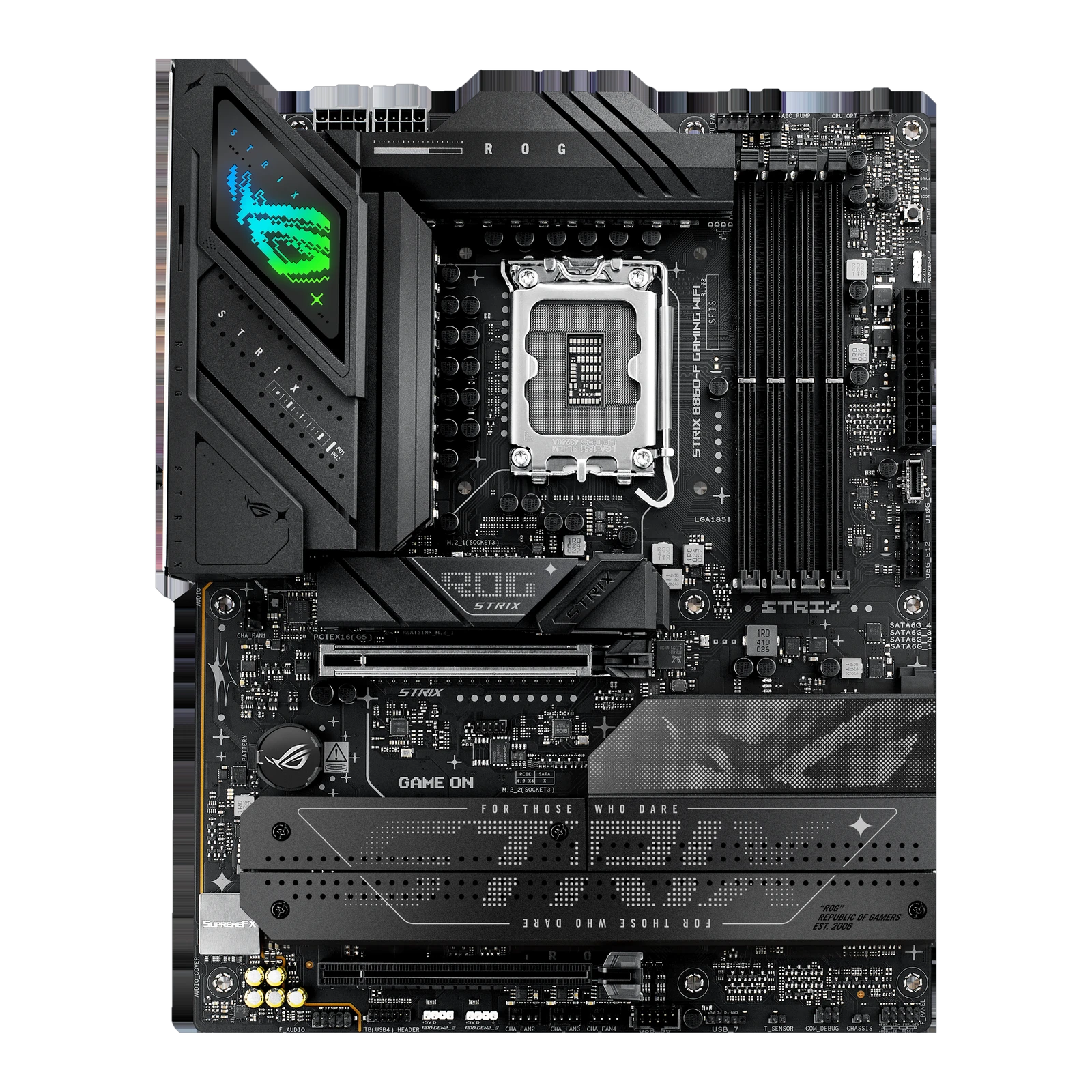

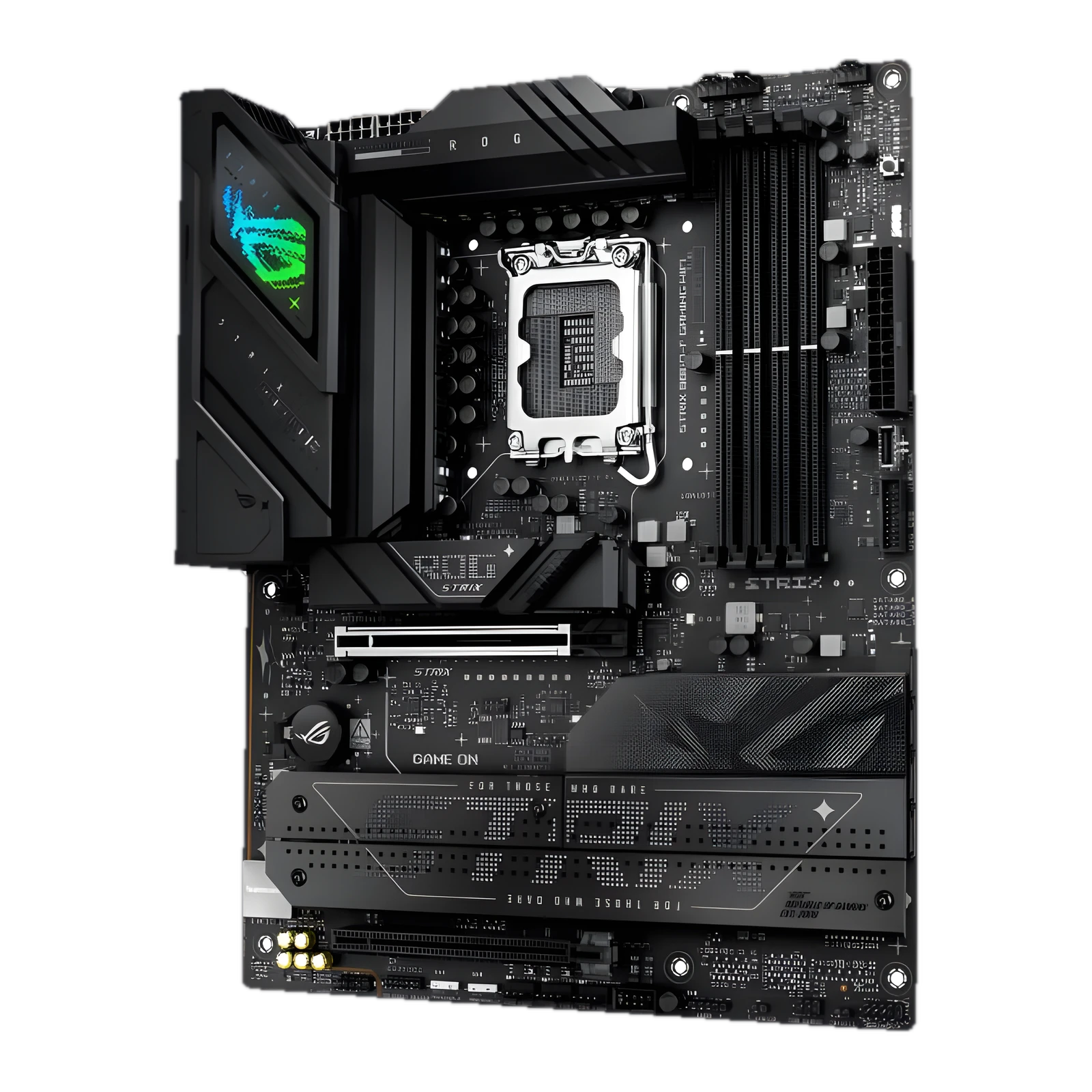

ASUS ROG STRIX B860-F GAMING WIFI DDR5 ATX Motherboard, LGA1851, Intel B860 Chipset, 4x DIMM Slots 9066MT/s, 2x PCIE (5.0/4.0) x16 Slots, 4x M.2 - 4x SATA, WIFI7, BT, DP, HDMI, Type-C, Max 256GB.

ASUS ROG Strix B860-F Gaming WiFi – High-End ATX Intel LGA1851 Board Packed with AI & Connectivity

The ROG Strix B860-F Gaming WiFi is an advanced ATX motherboard built for the Intel LGA1851 platform, designed to support Intel Core Ultra Series 2 CPUs. Combining ASUS’s powerful AI tools, high-speed connectivity (Thunderbolt 4, Wi-Fi 7, USB4), and robust power delivery, it’s an ideal platform for performance-hungry gaming, creative content work, or future-proofed builds.

Extreme Power & Overclocking Support

Featuring a 16+1+2+1 power stage setup with 80 A each and dual ProCool connectors, the board ensures stable, high-capacity delivery for intense CPU workloads. Its asynchronous clock generator isolates CPU BCLK domains—enabling freedom to overclock memory, NPU, and graphics while keeping CPU domain stable.

Record-Breaking DDR5 Performance

Equipped with four DDR5 DIMM slots, this board supports up to 256 GB of memory and extreme overclocked speeds beyond 9,066 MT/s using Asus Enhanced Memory Profile III (AEMP III).

Cutting-Edge Expansion & Storage

Includes a reinforced PCIe 5.0 ×16 SafeSlot for future GPUs, a PCIe 4.0 ×16 (x4) slot, and four M.2 storage slots—one PCIe 5.0 and three PCIe 4.0—all fitted with heatsinks to maintain thermals

Next-Level Connectivity & Networking

Dual USB4® ports deliver ultra-fast data transfer and display capabilities, while Wi-Fi 7 and 2.5 GbE LAN ensure lightning-fast network speed. Additional I/O includes HDMI, DisplayPort, Thunderbolt 4, and multiple high-Speed USB ports including 20 Gbps and 10 Gbps Type-C and Type-A.

Immersive Audio & Custom Lighting

SupremeFX audio featuring the ALC4080 codec with Savitech amplification delivers studio-grade clarity (120 dB SNR output / 110 dB recording). Aura Sync RGB and Gen2 headers provide fully synchronizable lighting across your build.

Advanced Cooling & Smart Design

Built-in VRM and M.2 heatsinks, plus four PWM fan headers and chipset cooling, ensure thermal performance. AI tools like AI Networking II and AI Advisor simplify performance tuning.

With top-tier specs—including PCIe 5.0, DDR5, USB4, Wi-Fi 7, and AI optimization—the ROG Strix B860-F Gaming WiFi is engineered to excel now and adapt to emerging technologies.
