B850M D3HP DDR5 m-ATX Motherboard, AM5 Socket, AMD B850 Chipset

Introduction

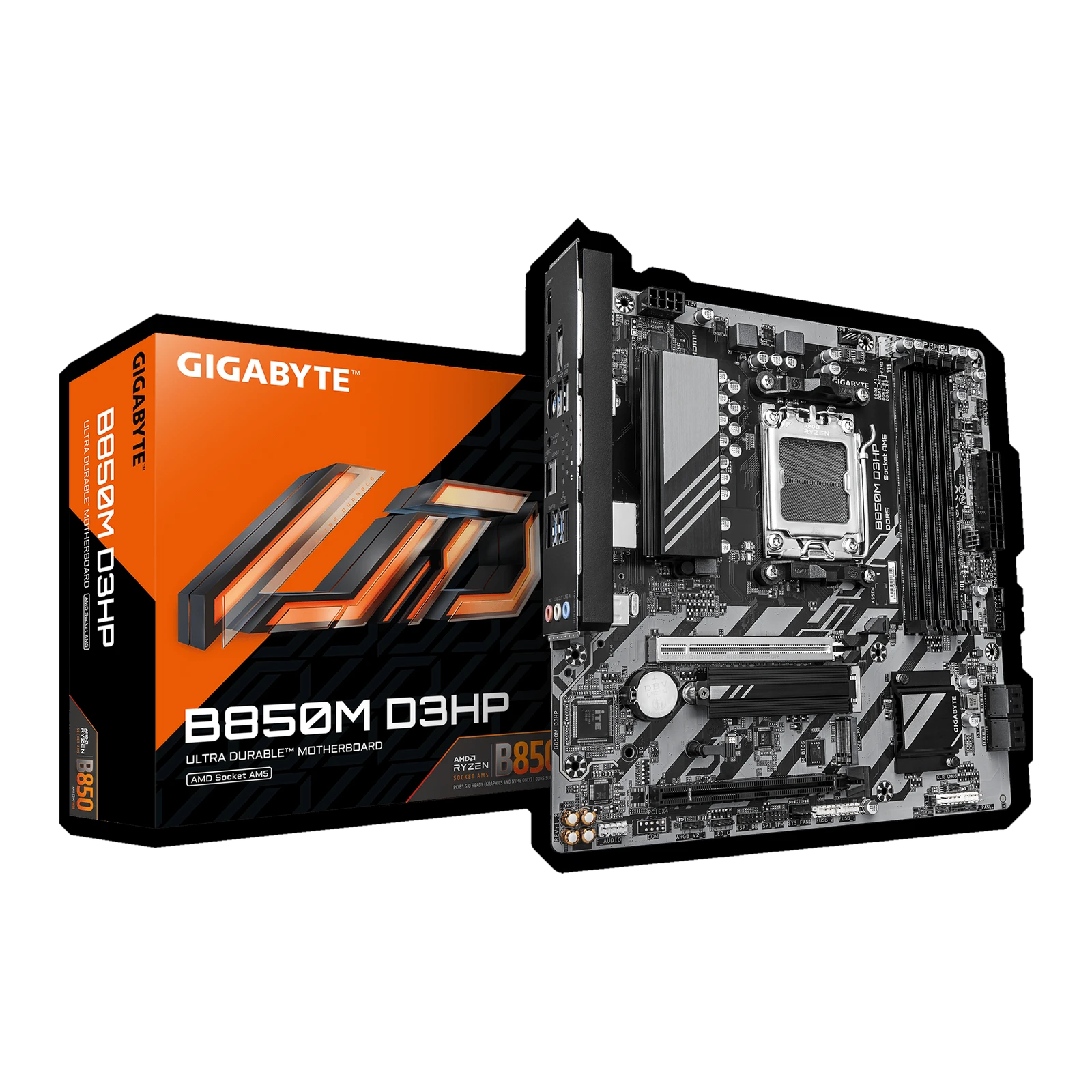

The GIGABYTE B850M D3HP (rev. 1.0) is a performance-centric micro-ATX motherboard built for AMD’s AM5 platform. Compatible with Ryzen™ 7000, 8000, and 9000 Series processors, it delivers powerful DDR5 memory support, PCIe 5.0 expansion, dual M.2 storage, Gigabit networking, and intuitive DIY features—all in a compact and accessible package.

Chipset & CPU Support

Powered by the AMD B850 chipset with an AM5 socket, it fully supports Ryzen Series desktop CPUs from the 7000 to 9000 generations.

Power Design

Features a 5+2+2-phase digital VRM on a robust 6-layer PCB, enhanced by UD Solid-Pin connectors for stable and efficient power delivery to modern CPUs.

Memory

Supports dual-channel DDR5 memory across four DIMM slots, with overclocking capabilities up to DDR5-8200 via AMD EXPO™ and Intel XMP profiles.

Expansion & Storage

Includes a reinforced PCIe 5.0 x16 SafeSlot with EZ-Latch for secure GPU installation, and one PCIe 3.0 x4 slot. Storage includes two M.2 slots: one PCIe 5.0 x4 and one PCIe 4.0 x4, both equipped with Thermal Guard for improved SSD thermals.{index=5}

Networking

Equipped with Realtek Gigabit Ethernet for reliable wired networking. Wireless options are not included.

Connectivity & I/O

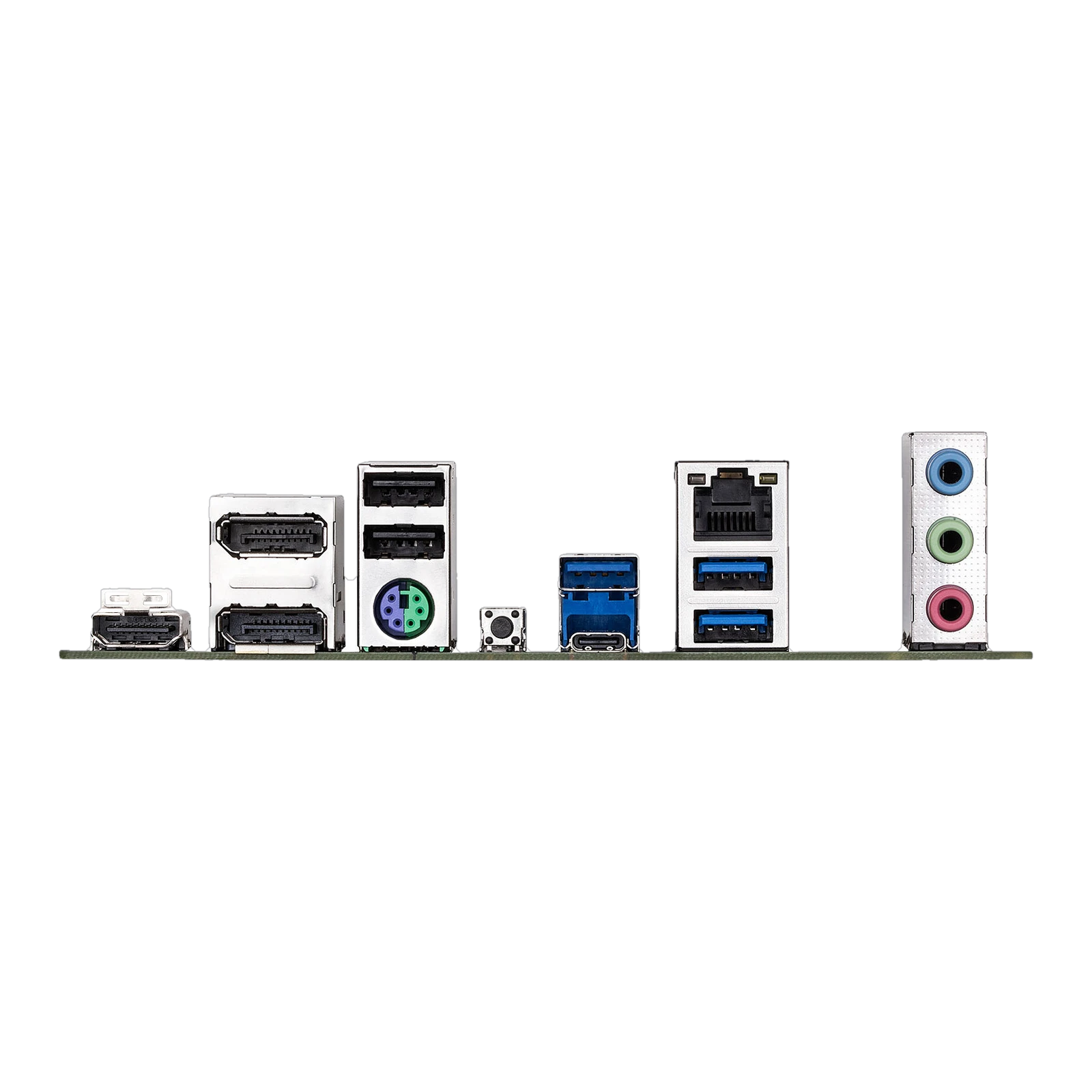

Rear I/O includes HDMI, dual DisplayPort, USB-C, USB-A, PS/2, Intel Gigabit LAN, audio jacks, and Q-Flash Plus for BIOS updates without CPU, RAM, or GPU. Internal headers support USB 3.0/2.0 and RGB.

Cooling & Software Features

Offers Smart Fan 6 thermal control, RGB Fusion for lighting, and user-friendly firmware with multi-theme BIOS UI, including quick AIO and fan control and Q-Flash Auto Scan.

Audio

Delivers 7.1-channel high-definition audio powered by Realtek ALC897 codec and enhanced by high-quality capacitors and noise shielding.

Compatibility & Benefits

This board strikes a strong balance of modern expansion, memory overclocking, reliable power delivery, and smart features within a compact micro-ATX form—ideal for budget-friendly yet future-ready builds.
