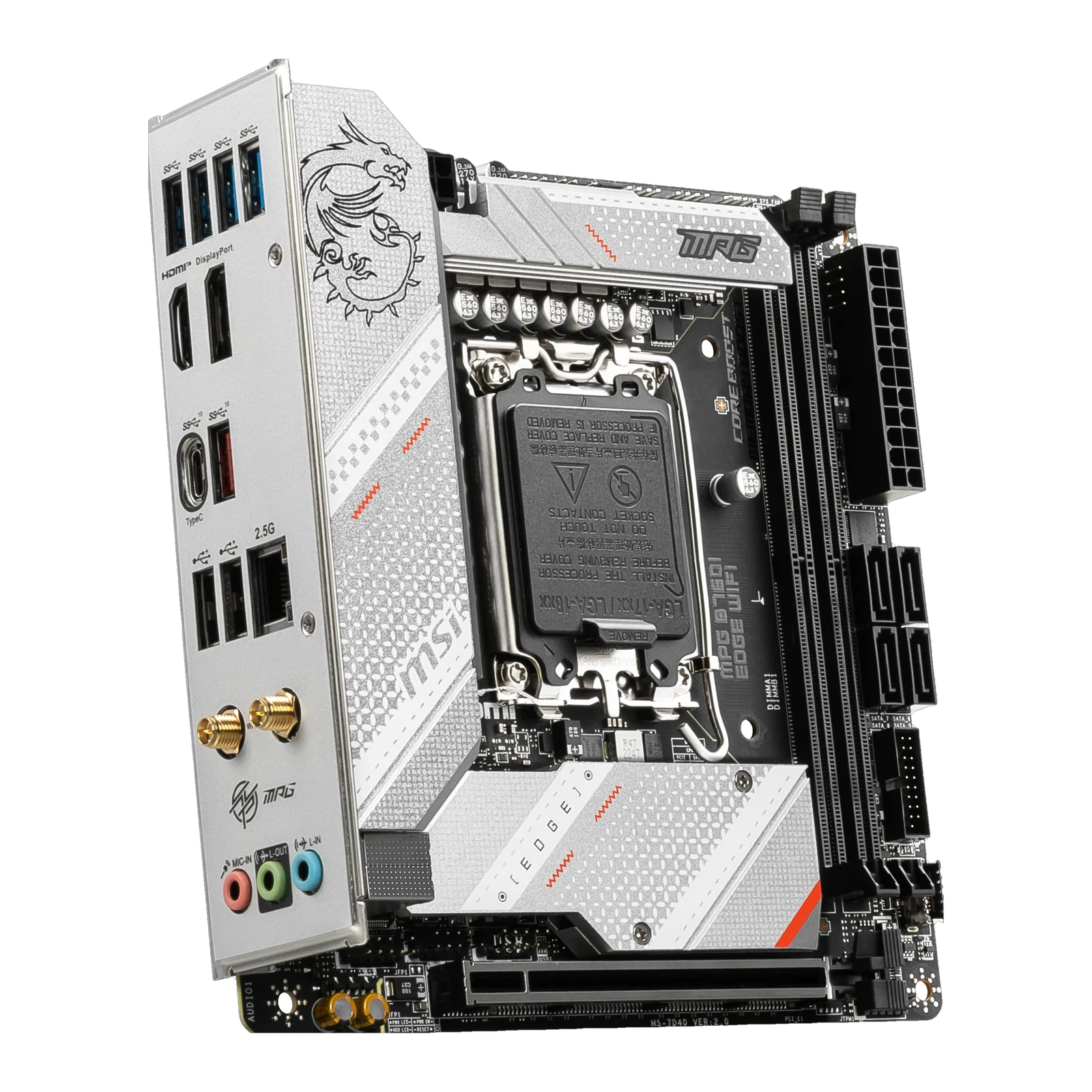

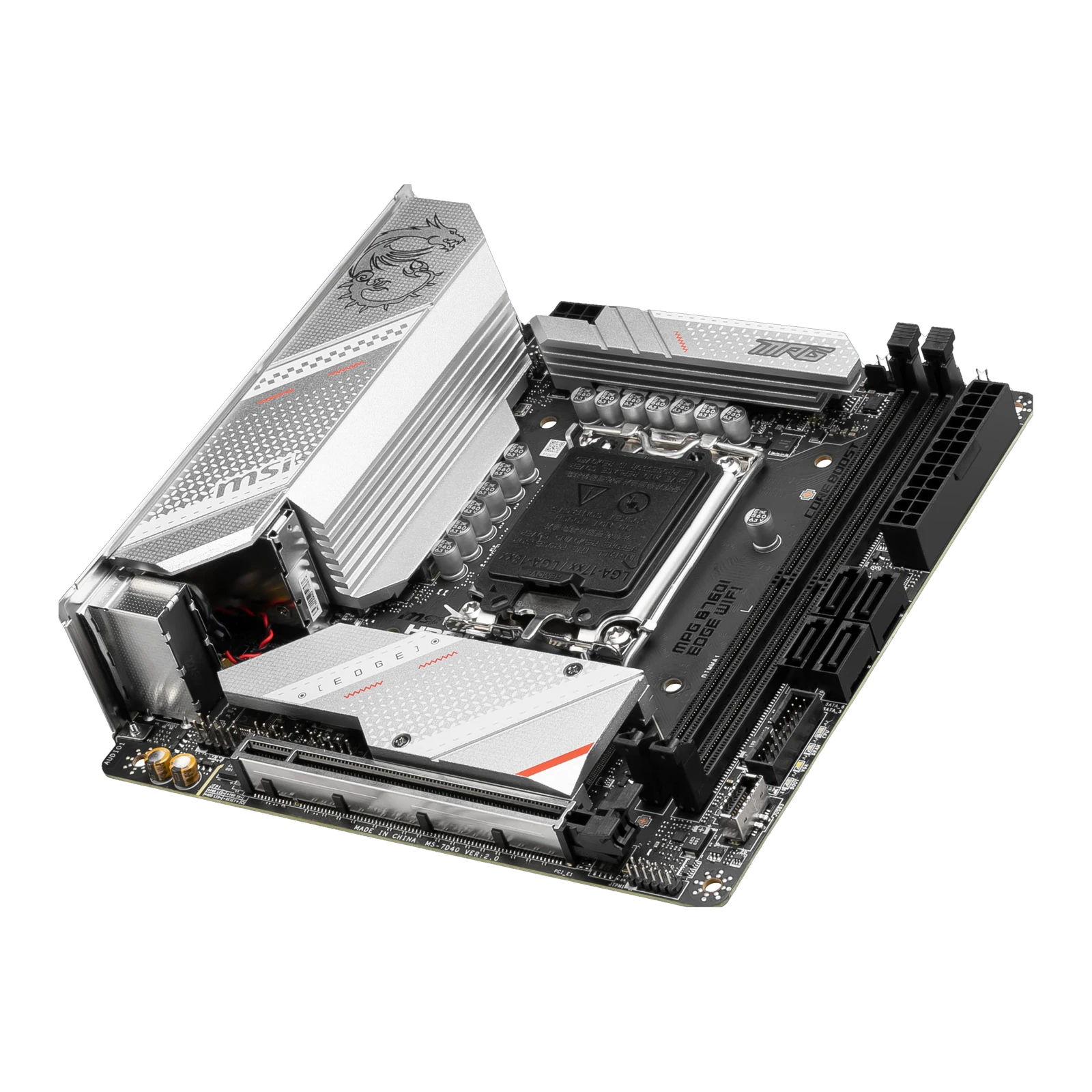

MSI MPG B760I EDGE WIFI Mini-ITX Motherboard, LGA1700 Socket, Intel B760 Chipset, 2x DIMM, 1x PCIe (5.0) x16 Slot, 2x M.2, 4x SATA 6Gb/s, 2.5G LAN, HDMI, DisplayPort, USB Type-C, Max 128GB RAM.

Introduction

The MSI MPG B760I EDGE WIFI is a high-performance Mini-ITX motherboard based on the Intel B760 chipset and featuring an LGA 1700 socket. Compatible with 12th through 14th Gen Intel Core, Pentium Gold, and Celeron processors, it delivers compact power with features like DDR5 memory overclocking, PCIe 5.0, Wi-Fi 6E, 2.5 GbE LAN, and elegant silver-white styling—designed for compact gaming and compact professional builds.

Power Design

It utilizes an efficient Direct 8+1+1-phase VRM design with 90 A DrMOS combined with Core Boost and Memory Boost technologies. Built on an 8-layer PCB with 2 oz thickened copper and extended heatsinks, it ensures stability in compact thermally constrained environments.

Memory

Supports dual-channel DDR5 memory via two DIMM slots, offering up to 96 GB capacity. Overclocking support reaches DDR5-7200+ (OC), delivering strong performance in a mini form factor.

Expansion & Storage

Includes a reinforced PCIe 5.0 ×16 slot for modern GPUs with Lightning Gen 5 tech, plus two M.2 slots—one PCIe 4.0 ×4 (CPU) and one PCIe 4.0 ×4 or SATA (chipset)—both with M.2 Shield Frozr. Four SATA 6 Gb/s ports with RAID support are also provided.

Networking

Equipped with Realtek 2.5 GbE LAN, Wi-Fi 6E (tri-band, MU-MIMO), and Bluetooth 5.3 for fast and stable wired and wireless connectivity.

Connectivity & I/O

The rear I/O features HDMI 2.1 and DisplayPort 1.4 for modern display support, multiple USB ports including USB 3.2 Gen 2 Type-C/Type-A and USB 3.2 Gen 1, plus robust audio and cooling headers.

Cooling & Build Quality

Thermal features include extended VRM heatsinks, 7 W/mK MOSFET and choke pads, an 8-layer server-grade PCB, M.2 Shield Frozr, and pump fan support—ensuring compact reliability and thermal efficiency.

DIY-Friendly Features

Designed for easy builds, it features a pre-installed I/O shield, XL PCIe clip, EZ Debug LEDs, and compatibility with MSI Center for system tuning.

Benefits

The MPG B760I EDGE WIFI combines a sleek aesthetic with mainstream features in a compact form factor—offering powerful performance suited for gamers and creators looking to build efficient small-form-factor systems without compromising on connectivity or style.
