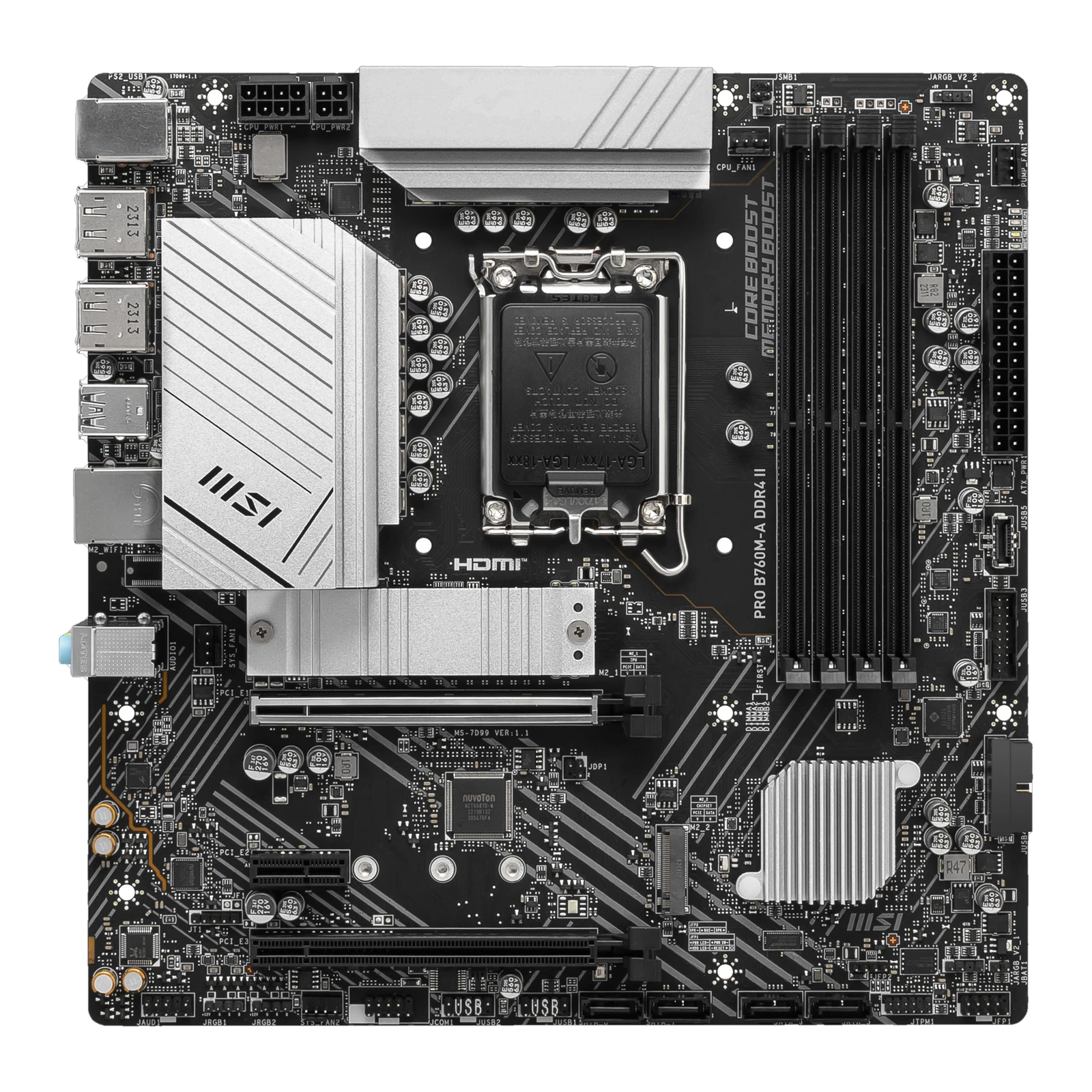

MSI PRO B760M-A DDR4 II m-ATX Motherboard, LGA1700 Socket, Intel B760 Chipset, 4x DIMM, 2x PCIe (4.0/3.0) x16 Slots, 2x M.2, 4x SATA 6Gb/s, 2.5G LAN, HDMI, DisplayPort, USB Type-C, Max 128GB RAM.

Introduction

The MSI PRO B760M-A DDR4 II is a practical and reliable micro-ATX motherboard based on the Intel B760 chipset, supporting LGA 1700 socket CPUs including 12th through 14th Gen Intel Core, Pentium Gold, and Celeron processors. Its DDR4 design balances modern connectivity with affordability—ideal for professionals and office builds requiring dependable performance.

Power Design

This board utilizes a 12+1-phase Duet Rail Power System with P-PAK components. It is equipped with an 8-pin plus 4-pin CPU power configuration and enhanced with MSI Core Boost and Memory Boost technologies for consistent power delivery, all built on a sturdy 6-layer, 2oz-thickened copper PCB.

Memory

Memory support includes four DDR4 DIMM slots, enabling up to 128 GB total capacity. It supports overclocked speeds up to DDR4-5333+ (OC) and features dual-channel operation and Intel XMP support for optimized performance.

Expansion & Storage

Expansion options include a primary PCIe 4.0 ×16 slot (from CPU), one PCIe 3.0 ×1, and one PCIe 4.0 ×4 (from chipset). For storage, the board includes two M.2 slots (one PCIe 4.0 ×4, the other supports PCIe 4.0/SATA) and four SATA 6Gb/s ports with RAID 0/1/5/10 support, all protected by M.2 Shield Frozr.

Networking

Provides stable wired networking via Realtek RTL8125BG 2.5 GbE LAN. While wireless features like Wi-Fi/Bluetooth are omitted in this model, it still delivers reliable, high-speed Ethernet connectivity suitable for most professional use cases.

Connectivity & I/O

The rear I/O includes multiple USB ports, including USB 3.2 Gen1 and Gen2, with front-panel USB 3.2 Type-C (via header). Display outputs include HDMI 2.1 and DisplayPort 1.4, both supporting up to 4K at 60Hz (depending on CPU iGPU capability). The board also features Audio Boost and convenient fan and power headers.

Cooling & Build Quality

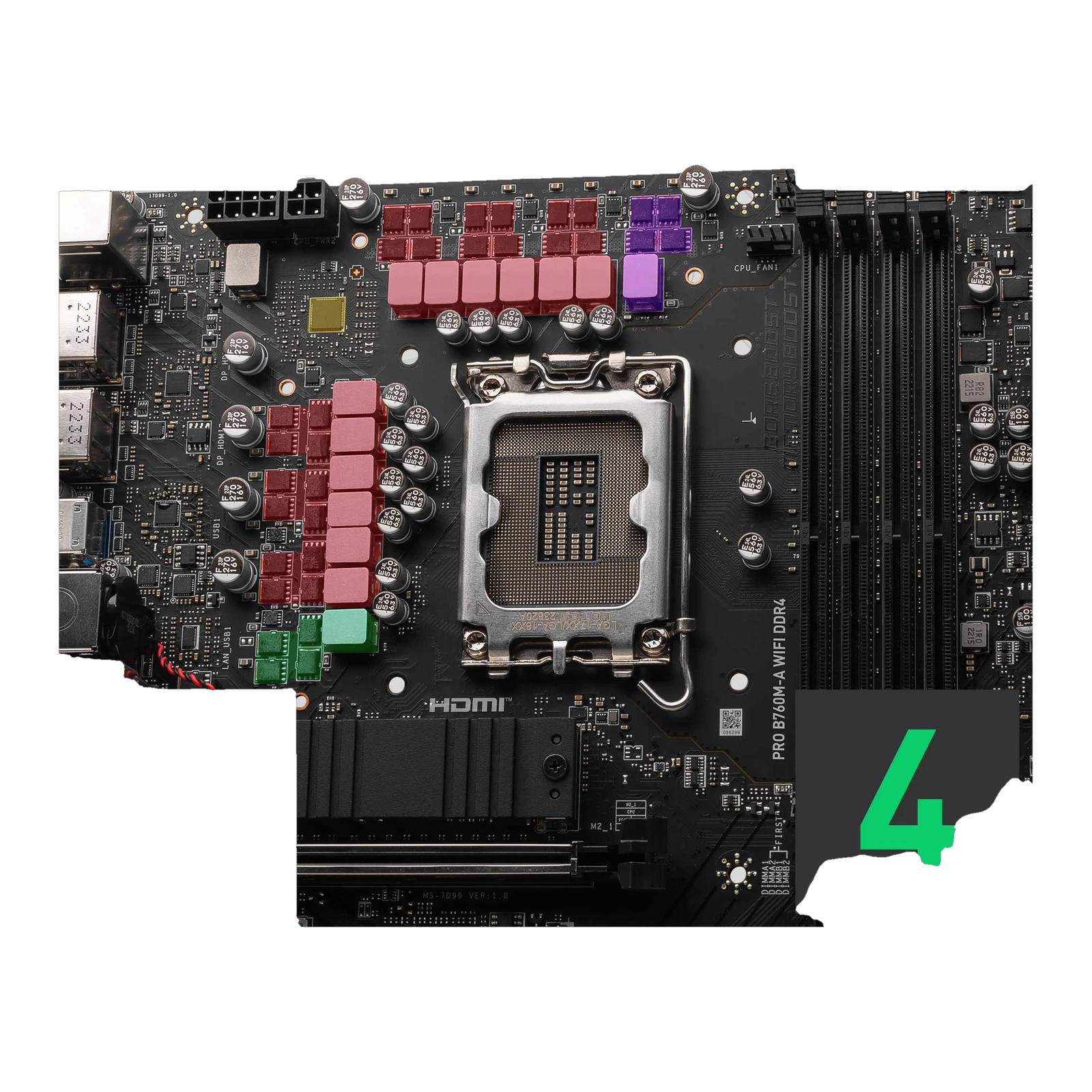

Thermal performance is enhanced with extended heatsinks, 7 W/mK MOSFET thermal pads, and additional choke pads to ensure heat dispersion in demanding environments. A durable mATX form-factor and enhanced component quality make it ideal for long-term reliability.

Benefits

The PRO B760M-A DDR4 II skillfully balances essential modern features—DDR4 overclocking, PCIe 4.0, fast LAN, and robust power/thermal design—in a cost-effective micro-ATX platform. It’s a great fit for small-form-factor office, productivity, or content-creation builds that require reliability and performance without extras like Wi-Fi.
