MSI PRO B760M-A WIFI DDR5 m-ATX Motherboard, LGA1700 Socket, Intel B760 Chipset, 4x DIMM, 2x PCIe (4.0/3.0) x16 Slots, 2x M.2, 4x SATA 6Gb/s, Intel® Wi-Fi 6E, 2.5G LAN, HDMI, DisplayPort, USB Type-C, Max 256GB RAM.

Introduction

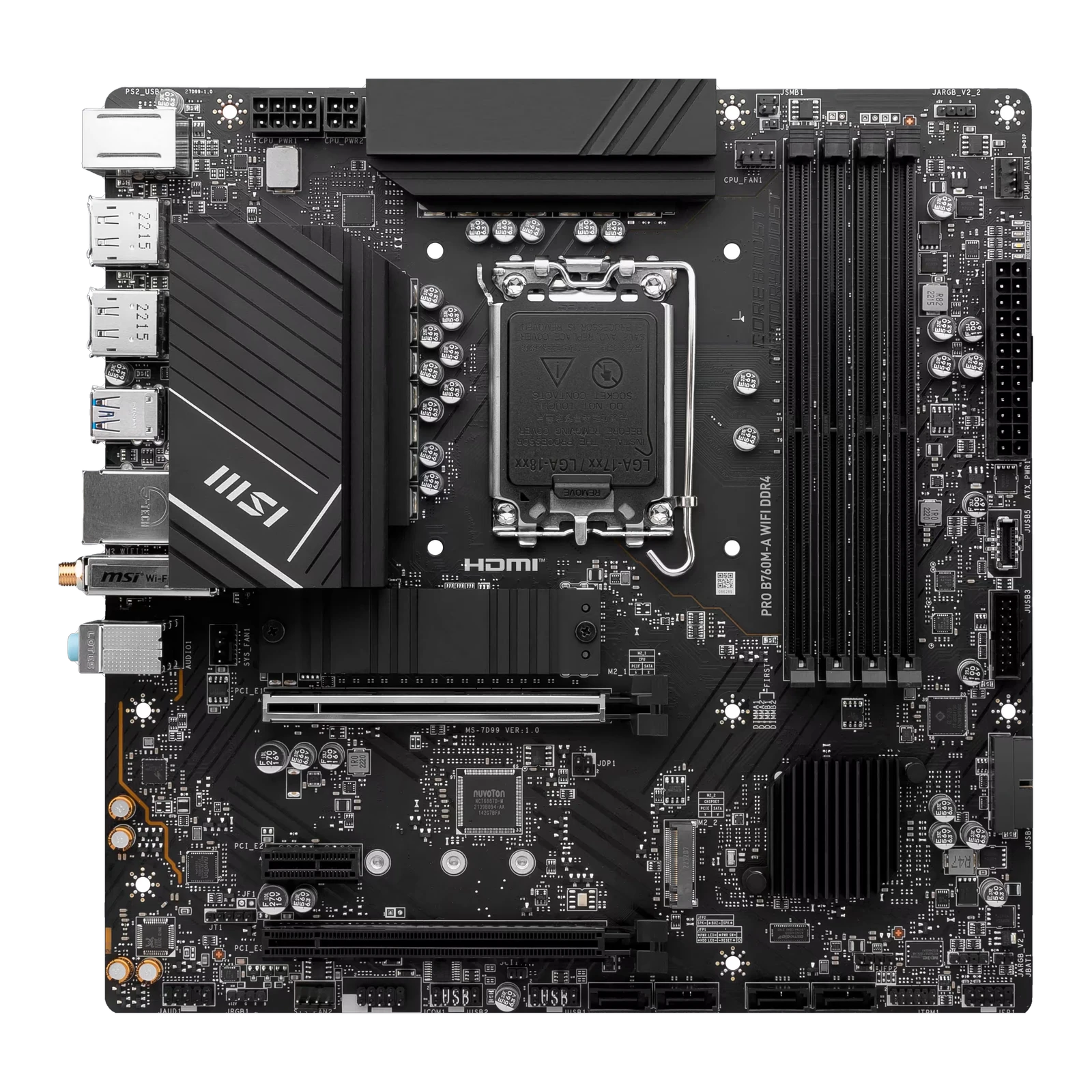

The **MSI PRO B760M-A WiFi** is a professional-grade micro-ATX motherboard built on Intel’s B760 chipset with the LGA 1700 socket. Tailored for productivity-focused builds, it supports 12th through 14th Gen Intel Core, Pentium Gold, and Celeron processors. It brings modern features such as Wi-Fi 6E, 2.5 GbE LAN, DDR4 support, PCIe 4.0, and solid build quality—making it a compelling platform for efficient workstations and budget-conscious systems.

Power Design

Featuring a 12+1+1 Duet Rail power design with P-PAK components, dual 8-pin CPU power connectors, Core Boost, Memory Boost, and OC Engine, the board ensures stable power delivery for demanding workloads. A 6-layer PCB with 2 oz copper and extended heatsinks enhances reliability.

Memory

Equipped with four DDR4 DIMM slots supporting up to 128 GB, the board accommodates overclocked speeds up to DDR4-5333+ (OC), with built-in XMP support for optimized performance.

Expansion & Storage

The board offers a Steel Armor PCIe 4.0 ×16 slot, plus a PCIe 4.0 ×16 (×4 mode) and a PCIe 3.0 ×1 slot for versatile expansion. Storage options include two M.2 slots (one NVMe PCIe 4.0 ×4 and one PCIe 4.0/SATA combo), along with four SATA 6 Gb/s ports and RAID support. M.2 drives benefit from MSI’s screwless Shield Frozr thermal solution.

Networking & Wireless

High-speed networking is handled by Realtek RTL8125BG 2.5 GbE LAN, paired with Intel Wi-Fi 6E (tri-band, MU-MIMO) and Bluetooth 5.3 for fast and reliable wireless and wired connectivity.

Connectivity & I/O

The rear I/O includes USB 3.2 Gen 2×2 Type–C, multiple USB 3.2 Gen 2/Gen 1 ports, USB 2.0, HDMI 2.1, DisplayPort 1.4, PS/2 combo port, Wi-Fi antenna connectors, and audio outputs with Realtek ALC897 codec. Internal headers support front-USB-C, multiple USB-A ports, audio, and fan controls.

Cooling & Build Quality

Thermal design features include extended heatsinks, MOSFET and choke thermal pads, 2 oz copper PCB, and M.2 Shield Frozr. The board also comes with a pre-installed I/O shield and strong build integrity.

Benefits

The PRO B760M-A WiFi strikes a practical balance: modern connectivity, overclock-ready memory support, PCIe 4.0, and stellar thermal and power delivery—all packed into a cost-effective micro-ATX platform. It’s especially well-suited for office PCs, compact workstations, or budget-friendly builds that need reliability without frills. }
