MSI PRO B760M-P DDR5 m-ATX Motherboard, LGA1700 Socket, Intel B760 Chipset, 4x DIMM, 1x PCIe (4.0) x16 Slot, 2x M.2, 4x SATA 6Gb/s, HDMI, DP, VGA, USB Type-C, Max 256GB RAM.

Introduction

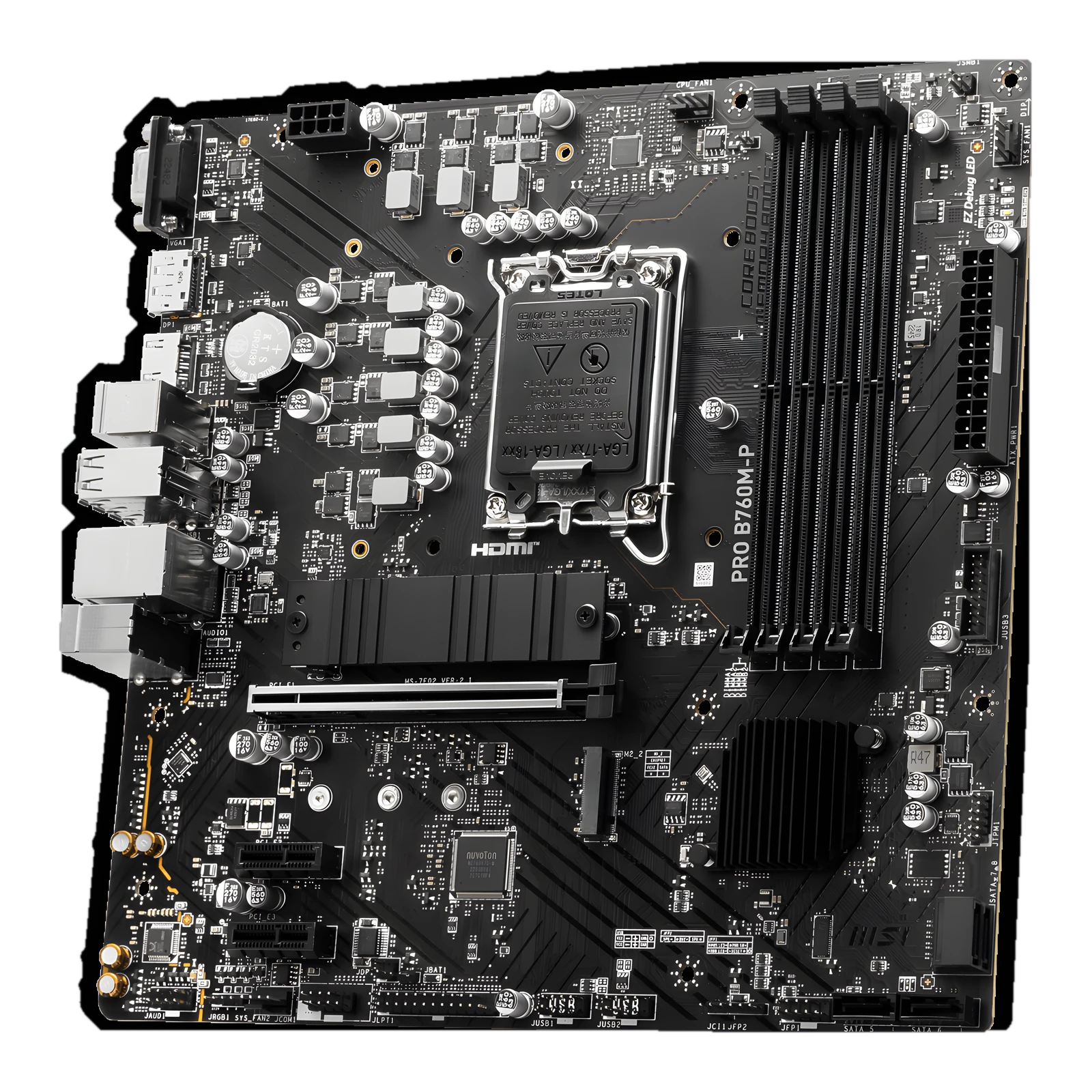

The MSI PRO B760M-P (DDR4) is a durable and efficient micro-ATX motherboard built on Intel’s B760 chipset, compatible with 12th through 14th Gen Intel Core, Pentium Gold, and Celeron processors via the LGA 1700 socket. Designed for business and productivity users, it focuses on reliability and performance, featuring DDR4 memory support, PCIe 4.0, M.2 Shield Frozr, USB 3.2 Gen 2×2 connectivity, and quality audio—making it an excellent choice for compact workstations or budget-conscious builds.

Power Design

Equipped with MSI’s Core Boost and Memory Boost, this board boasts a robust 12+1+1 Duet Rail power delivery system with dual 8-pin CPU power connectors and the OC Engine for improved stability under load. Its 6-layer, 2 oz thickened copper PCB, combined with extended heatsinks, ensures consistent power efficiency.

Memory

Supports up to 128 GB of DDR4 memory across four DIMM slots, with overclocking capability up to DDR4-5333+ MT/s (OC), and easy tuning via Intel XMP profiles.

Expansion & Storage

The motherboard includes a steel-reinforced PCIe 4.0 ×16 slot for graphics cards, along with a PCIe 4.0 ×16 (×4 mode) and a PCIe 3.0 ×1 slot for additional expansion. Storage is handled via two M.2 slots—both supporting high-speed PCIe 4.0, with one also supporting SATA—and a set of four SATA 6 Gb/s ports with RAID support. MSI’s M.2 Shield Frozr protects SSDs from thermal throttling.

Networking & Wireless

Delivering reliable connectivity, the board includes gigabit Ethernet (Realtek RTL8125BG) or faster depending on revision, and optional Wi-Fi 6E plus Bluetooth support on Wi-Fi versions.

Connectivity & I/O

The rear I/O features USB 3.2 Gen 2×2 Type-C, multiple USB 3.2 Gen 2 and Gen 1 ports, legacy USB 2.0 ports, HDMI 2.1, DisplayPort 1.4, PS/2 ports, and 7.1-channel HD audio with Audio Boost. Internal headers include front-panel USB-C, fan controls, and debug LEDs for easy monitoring.

Cooling & Build Quality

Thermal resilience is enhanced by extended heatsinks, thermal pads, M.2 Shield Frozr, and a pre-installed I/O shield—all contributing to reliable, maintenance-friendly performance.

Benefits

The PRO B760M-P (DDR4) strikes an ideal balance between cost and capability. It delivers essential modern connectivity, memory overclocking, and strong build quality in a compact mATX form factor—perfect for productivity-focused systems, compact workstations, or budget gaming builds that prioritize reliability.
