MSI · Mainboard

MEG Z790 GODLIKE DDR5 E-ATX Motherboard, LGA 1700 Socket, Intel Z790 Chipset, 4x DIMM Slots up to 7800+MHz, 2x PCIe (5.0) x16 Slots, 7x M.2 - 6x SATA, Wi-Fi 6E, 10G & 2.5G LAN, Thunderbolt 4, Type-C, Dual Audio DACs, OLED Touch Panel, Max 256GB RAM.

TECHNICAL SPECS
BrandMSI
ChipsetZ790
Form FactorE-ATX
Memory Slots4
SocketLGA1700
PlatformIntel
RAM TypeDDR5
M.2 Slots5
1-YEAR WARRANTY
PRICE
AED 1,000
● OUT OF STOCK

MEG Z790 GODLIKE DDR5 E-ATX Motherboard, LGA 1700 Socket, Intel Z790 Chipset, 4x DIMM Slots up to 7800+MHz, 2x PCIe (5.0) x16 Slots, 7x M.2 - 6x SATA, Wi-Fi 6E, 10G & 2.5G LAN, Thunderbolt 4, Type-C, Dual Audio DACs, OLED Touch Panel, Max 256GB RAM. — details

Home / Mainboard

MEG Z790 GODLIKE DDR5 E-ATX Motherboard, LGA 1700 Socket, Intel Z790 Chipset, 4x DIMM Slots up to 7800+MHz, 2x PCIe (5.0MEG Z790 GODLIKE DDR5 E-ATX Motherboard, LGA 1700 Socket, Intel Z790 Chipset, 4x DIMM Slots up to 7800+MHz, 2x PCIe (5.0MEG Z790 GODLIKE DDR5 E-ATX Motherboard, LGA 1700 Socket, Intel Z790 Chipset, 4x DIMM Slots up to 7800+MHz, 2x PCIe (5.0MEG Z790 GODLIKE DDR5 E-ATX Motherboard, LGA 1700 Socket, Intel Z790 Chipset, 4x DIMM Slots up to 7800+MHz, 2x PCIe (5.0

Introduction

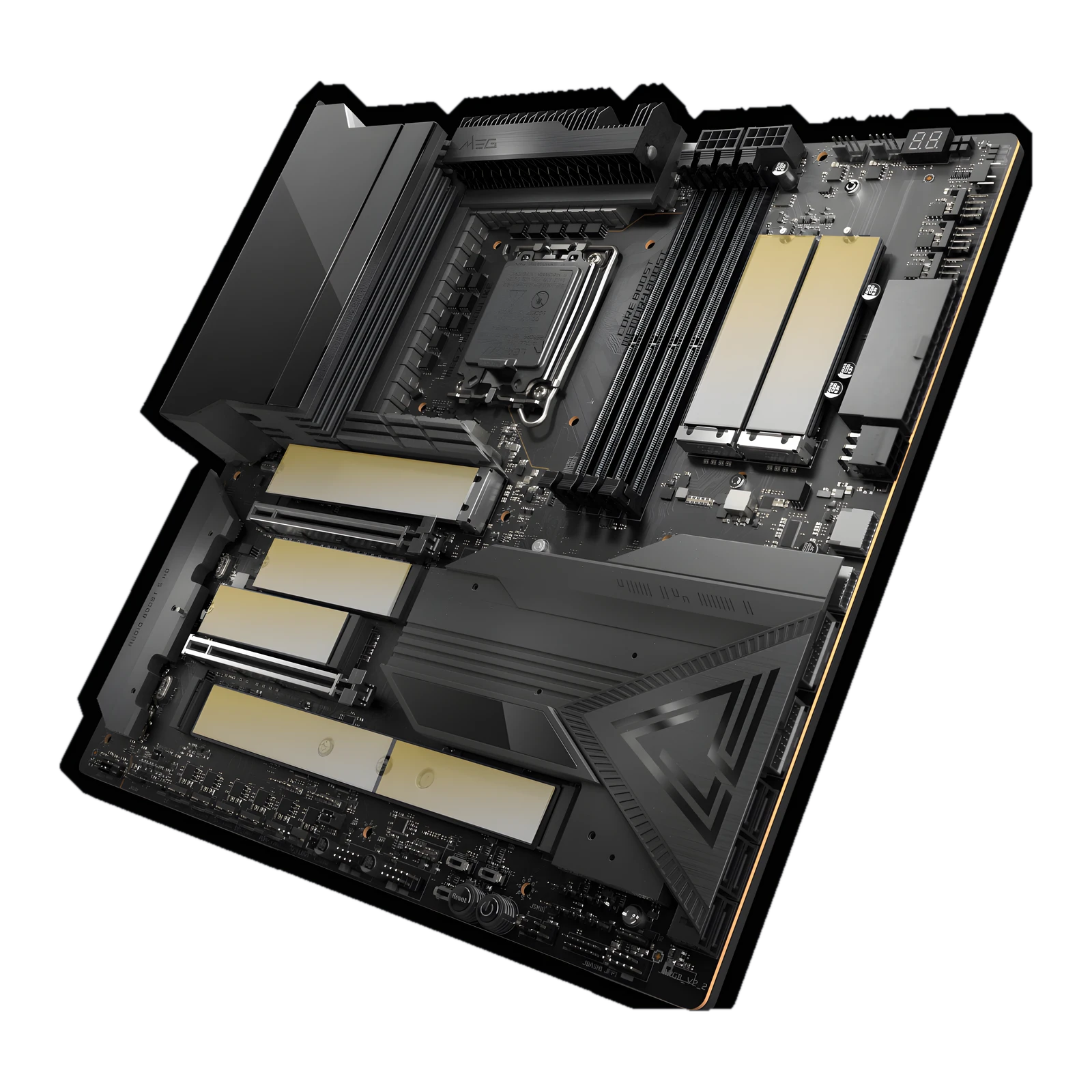

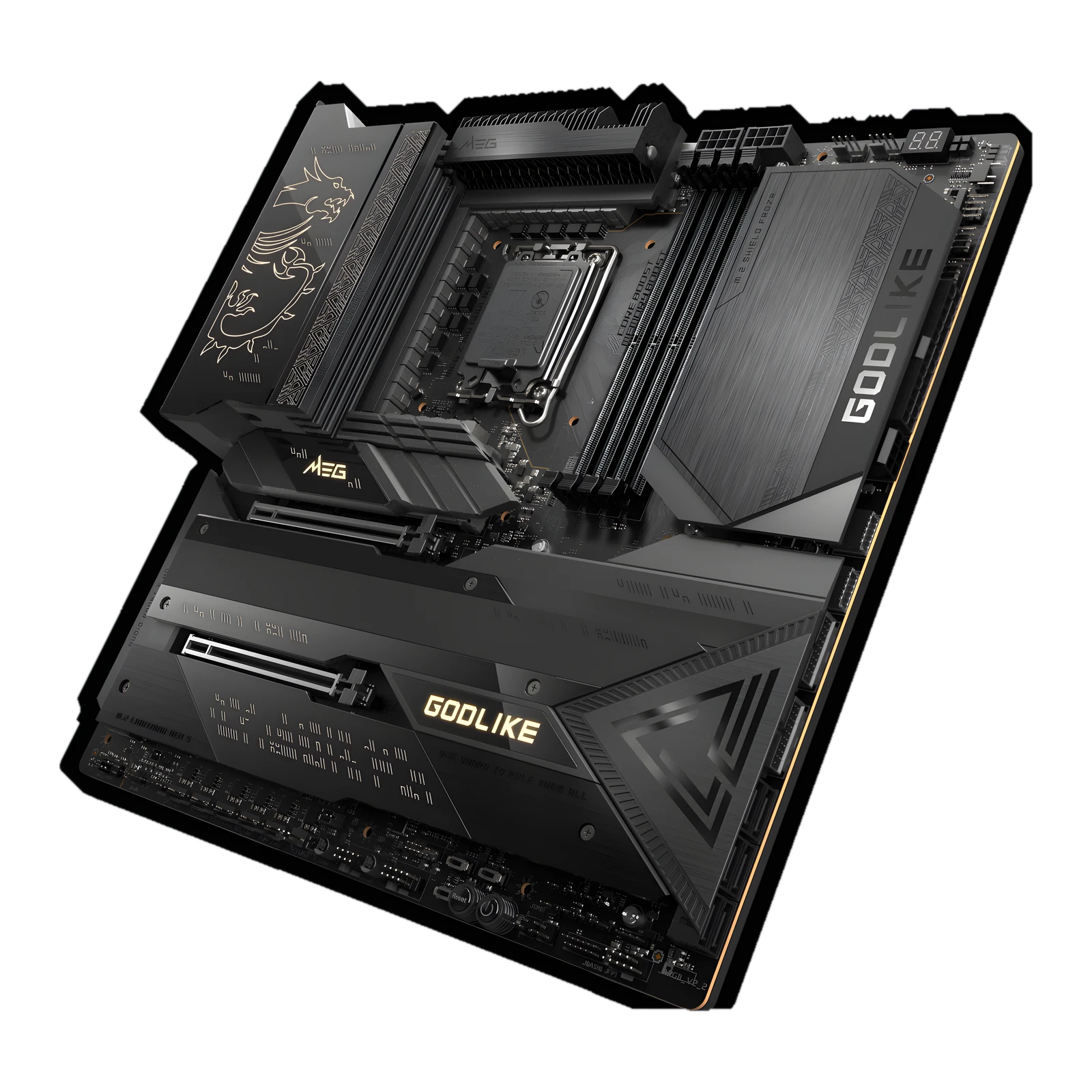

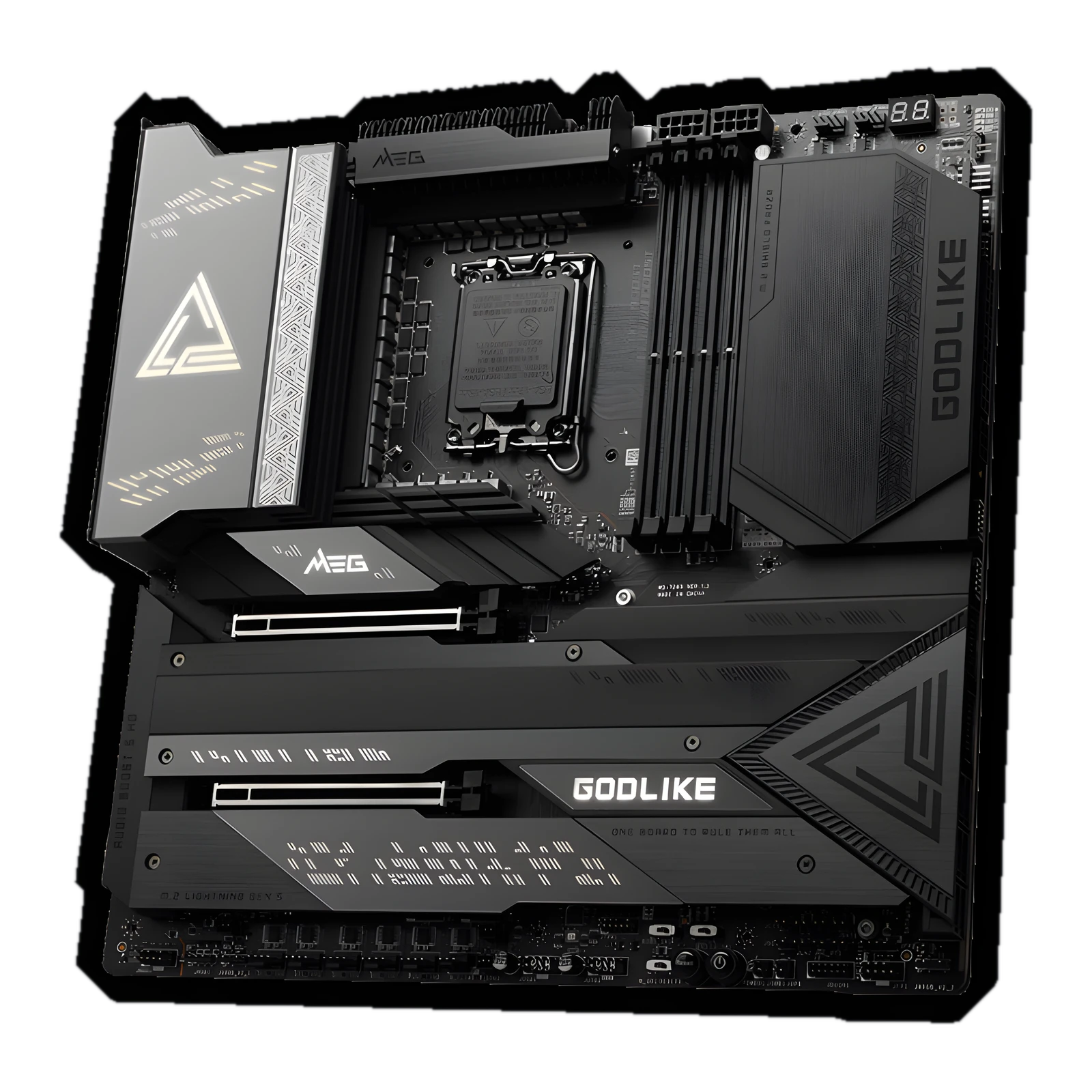

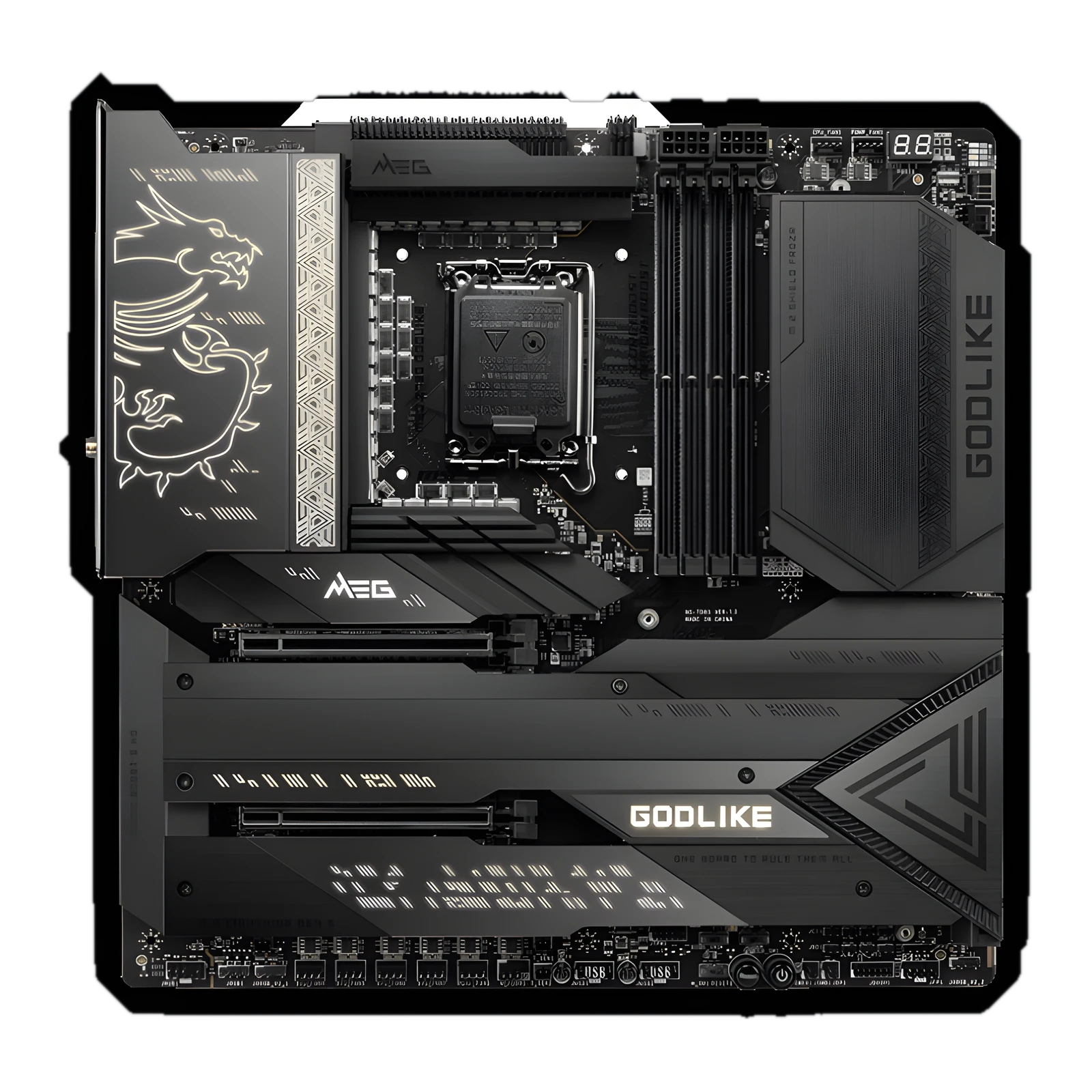

The MSI MEG Z790 GODLIKE stands at the pinnacle of MSI’s Intel motherboard lineup. Built on the Intel Z790 chipset and E-ATX form factor, it supports Intel LGA 1700 CPUs from 12th to 14th Gen. This flagship board delivers extreme performance with features like DDR5 overclocking, PCIe 5.0, Wi-Fi 6E, Thunderbolt 4, and a unique M-Vision Dashboard that transforms system control with a touch-enabled screen.

Power Design

The board features an overkill 26+2+1-phase power delivery system using 105 A Smart Power Stages, backed by Core Boost, OC Engine, and a robust 8-layer 2 oz copper PCB—designed for extreme CPU overclocking and stability under heavy loads.

Memory

Supports four DDR5 DIMMs with speeds up to DDR5-7800+ (OC), supporting up to 192 GB of memory—ideal for high-performance computing tasks.

Expansion & Storage

Offers extensive expandability with two PCIe 5.0 x16 slots (x16 or x8/x8), and seven M.2 slots—including one PCIe 5.0 and six PCIe 4.0 slots—all compatible with RAID. Plus six SATA 6 Gb/s ports support legacy drives.

Networking

Includes blazing-fast networking: 10 GbE via Marvell AQC113 and 2.5 GbE, onboard Wi-Fi 6E with MU-MIMO, and Bluetooth 5.3 for versatile, low-latency connectivity.

Connectivity & I/O

Features dual Thunderbolt 4 (USB4 / DP passthrough), USB 3.2 Gen 2×2 Type-C, multiple USB 3.2 Gen 2 ports, and mini DisplayPort inputs for flexible display setups.

Cooling & Build Quality

Engineered with heat in mind, the board uses wave-fin VRM heatsinks, Direct-Touch Cross heat-pipes, M.2 Shield Frozr (screwless), and MOSFET thermal pads. A robust aluminum cover and metal backplate enhance durability and thermal efficiency.

M-Vision Dashboard

This flagship includes the M-Vision Dashboard— a magnetic, USB-C powered 4.5-inch IPS touchscreen for monitoring, tuning, and diagnostics right from your desktop.

Audio & Software

Delivers premium sound via Realtek ALC4082 paired with ESS DAC/AMP hardware. Fully supports Click BIOS 5 and MSI Center for tuning, RGB control, and system monitoring.

Benefits

With an unmatched feature set—Thunderbolt 4, Wi-Fi 6E, 10 GbE, seven M.2 slots, and the M-Vision Dashboard—this board is a future-proof, no-compromise platform for enthusiasts who demand the absolute best. Just be ready for its premium price tag.
